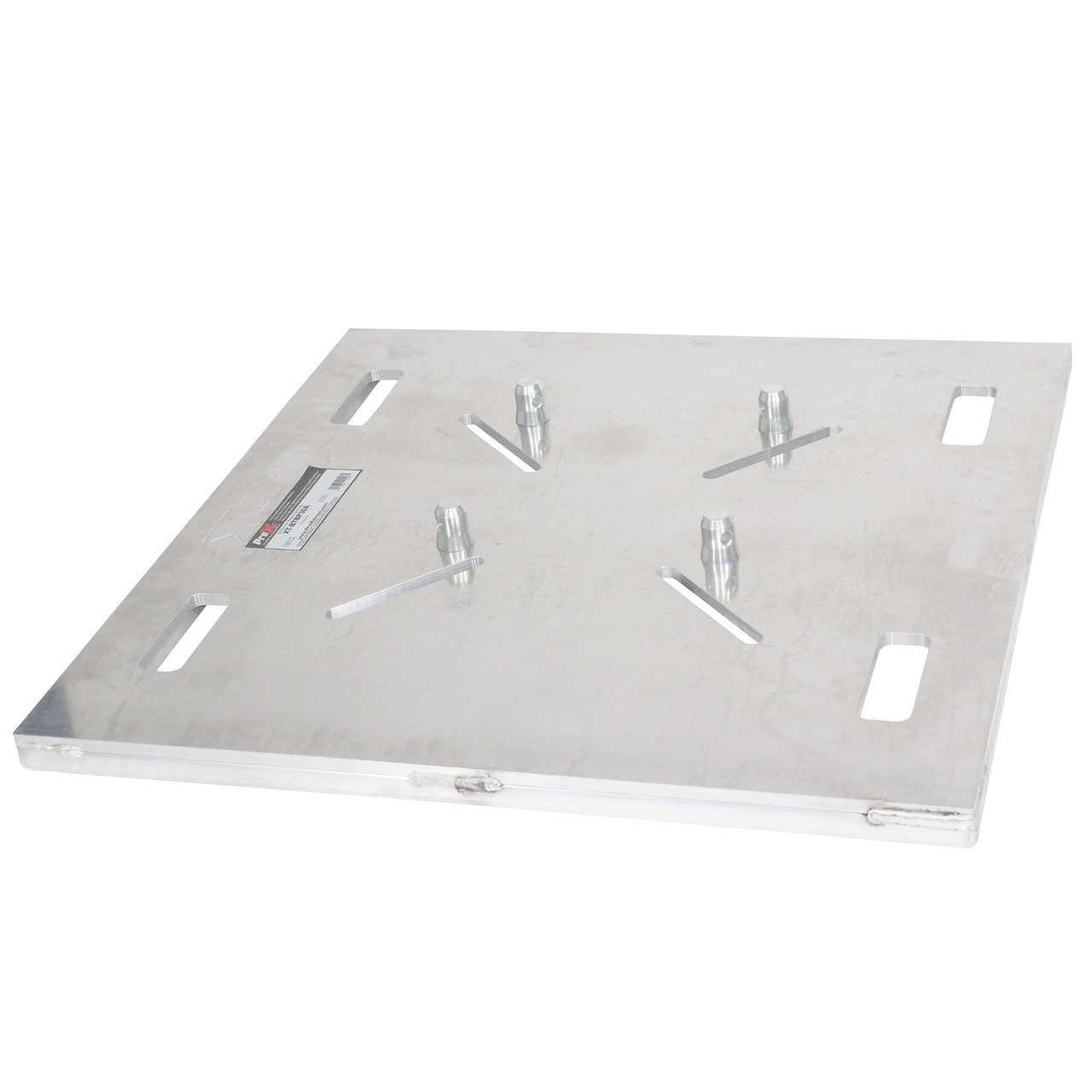

24" Aluminum BoltX™ Base Plate – Raised Frame for 12" & 16" Bolted Box Truss and F34 Truss Systems

ProX XT-BTBP24A BoltX™ Heavy-Duty Base Plate is engineered for professional box truss systems where strength, stability, and reliable fitment matter. Built for demanding production environments, this base plate is ideal for stage lighting, concerts, event structures, trade show builds, house of worship installations, obstacle course structures, and other rigging-related applications where a secure truss foundation is required. What sets BoltX™ apart is ProX’s heavy-duty construction and smart design approach. The plate is built from a 1/2" aluminum plate welded to a raised 1" x 1.5" solid aluminum extrusion frame , delivering excellent strength while maintaining a professional-grade finish. The raised frame design adds rigidity and helps create a durable platform for repeated use in touring, rental, and installation settings. The XT-BTBP24A is designed to mate perfectly with ProX BoltX™ 12" and 16" bolted box truss systems , while also being drilled to fit F34 truss patterns for added versatility. Its industry-standard 6.75" x 6.75" bolt pattern allows compatibility with many other 12" professional box truss manufacturers that use the same bolt-center spacing. This makes it a practical solution for productions and venues working with mixed truss inventories. For easier handling on the job, the base plate features four integrated hand holes for lifting and positioning. It is also slotted and drilled for easy center or offset mounting , giving users more flexibility during setup. Each unit includes one full set of four 5/8"-11 x 2.5" (NC) attachment bolts, nuts, flat washers, and lock washers for quick connection to compatible truss sections. Manufactured with quality and safety in mind, the XT-BTBP24A is load tested and inspected during production and quality control . It is welded to TÜV standards using 6082-T6 alloy by GSI SLV-certified welders , reflecting ProX’s commitment to dependable performance and professional workmanship. Important: Always determine the total load weight of your structure and mounted equipment before use, and consult the appropriate loading chart for safe operation. Designed for 12" and 16" BoltX™ bolted box truss systems Also drilled to fit F34 truss patterns (conical connectors included) Industry-standard 6.75" x 6.75" bolt pattern with 5/8" holes Compatible with many other 12" professional box truss manufacturers Heavy-duty 1/2" aluminum plate construction Reinforced with 1" x 1.5" solid aluminum extrusions for added strength Raised frame design for improved rigidity and professional structural support Four convenient hand holes for easier lifting and positioning Slotted and drilled for quick center or offset mounting options Ideal for stage lighting, concerts, event production, installations, and structural builds Load tested and inspected during manufacturing and quality control Includes one set of four 5/8"-11 x 2.5" (NC) attachment bolts, nuts, flat washers, and lock washers Welded to TÜV standards Made from 6082-T6 alloy Welded by GSI SLV-certified welders Finish: Natural Aluminum Fits: Compatible with most other 12″ Professional Box Truss Manufacturers
