4 Channel XLR-M CAT6 Audio/DMX Portable Snake Box

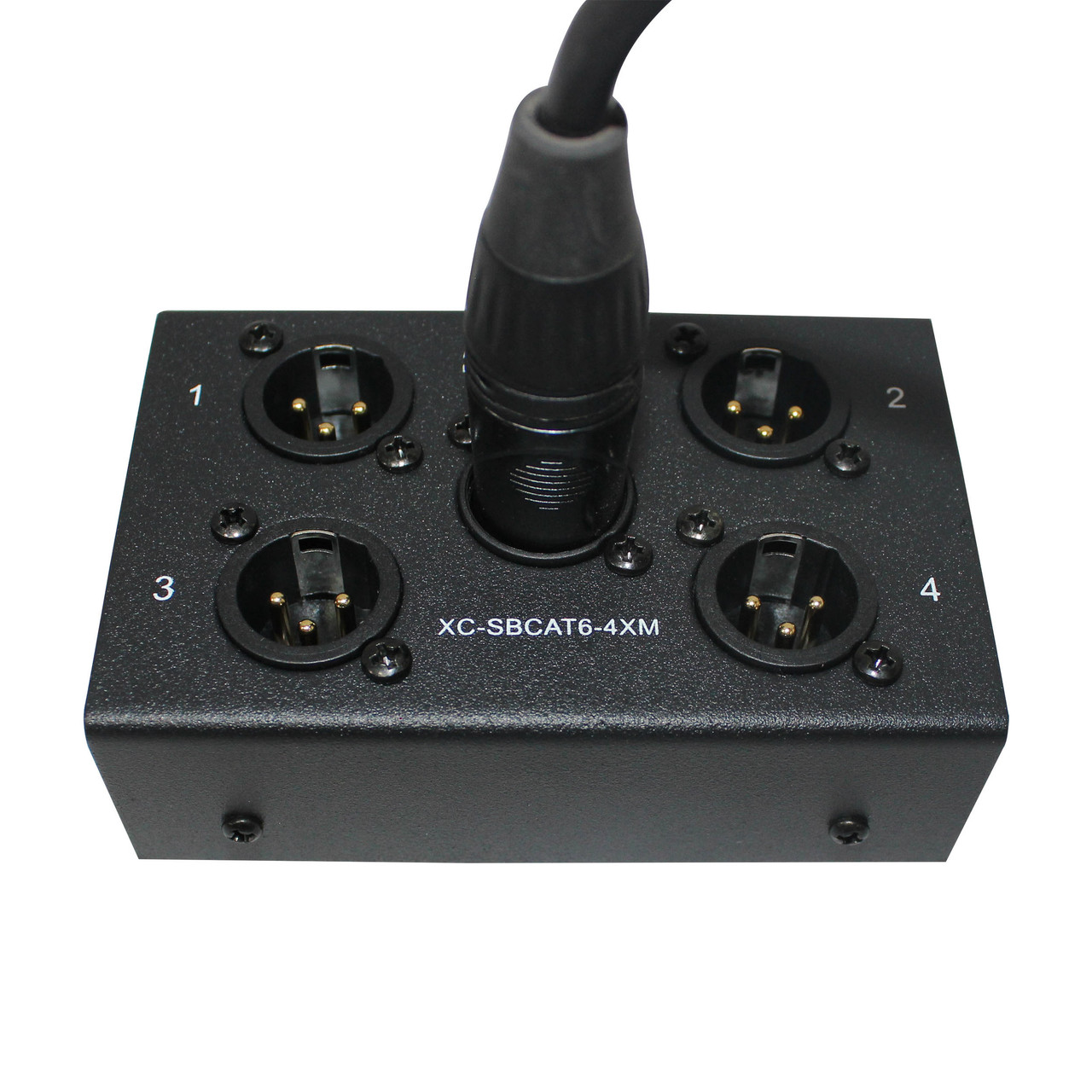

The ProX XC-SBCAT6-4XM Audio Snake Box is half of a pair of metal boxes that are used to send up to four audio/DMX signals over a single run of CAT-5, CAT-5E or CAT-6 cables. They are low-cost & compact. Both an XC-SBCAT6-4XF and an XC-SBCAT6-4XM are required for the working pair. Designed to the highest professional standards the XC-SBCAT6-4XM Snake Box has a wide, flat frequency response You can mix and match Mic/Line, Line or AES/EBU configurations making the Snake Box a very versatile high-quality means of transporting analog or digital signals. This Snake Box has been factory tested over CAT-5 UTP & CAT-6 STP cables. Analog Audio or Digital DMX Gold Plated Contacts Mic / Line / AES audio all on the same cable Supports 48V Phantom power (needs STP Shielded CAT-x cable No Ground Loops Add a second unit to increase the number of channels Rugged Gig Ready construction RoHS Compliant Bandwidth: 20 Hz to 20 kHz Crosstalk: Better than -95 dB at 20 KHz Connectors: PBE-202S Sending end - 4x Female XLR to Ethercon RJ45 jack PBE-202R Receiving end - Ethercon RJ45 to 4x Male XLR Dimensions: 107mm x 70mm x 45mm Weight: 400 grams (0.4 Kg) The ProX XC-SBCAT6-4XM Audio Snake Box is half of a pair of metal boxes that are used to send up to four audio/DMX signals over a single run of CAT-5, CAT-5E or CAT-6 cables. They are low-cost & compact. Both an XC-SBCAT6-4XF and an XC-SBCAT6-4XM are required for the working pair.
