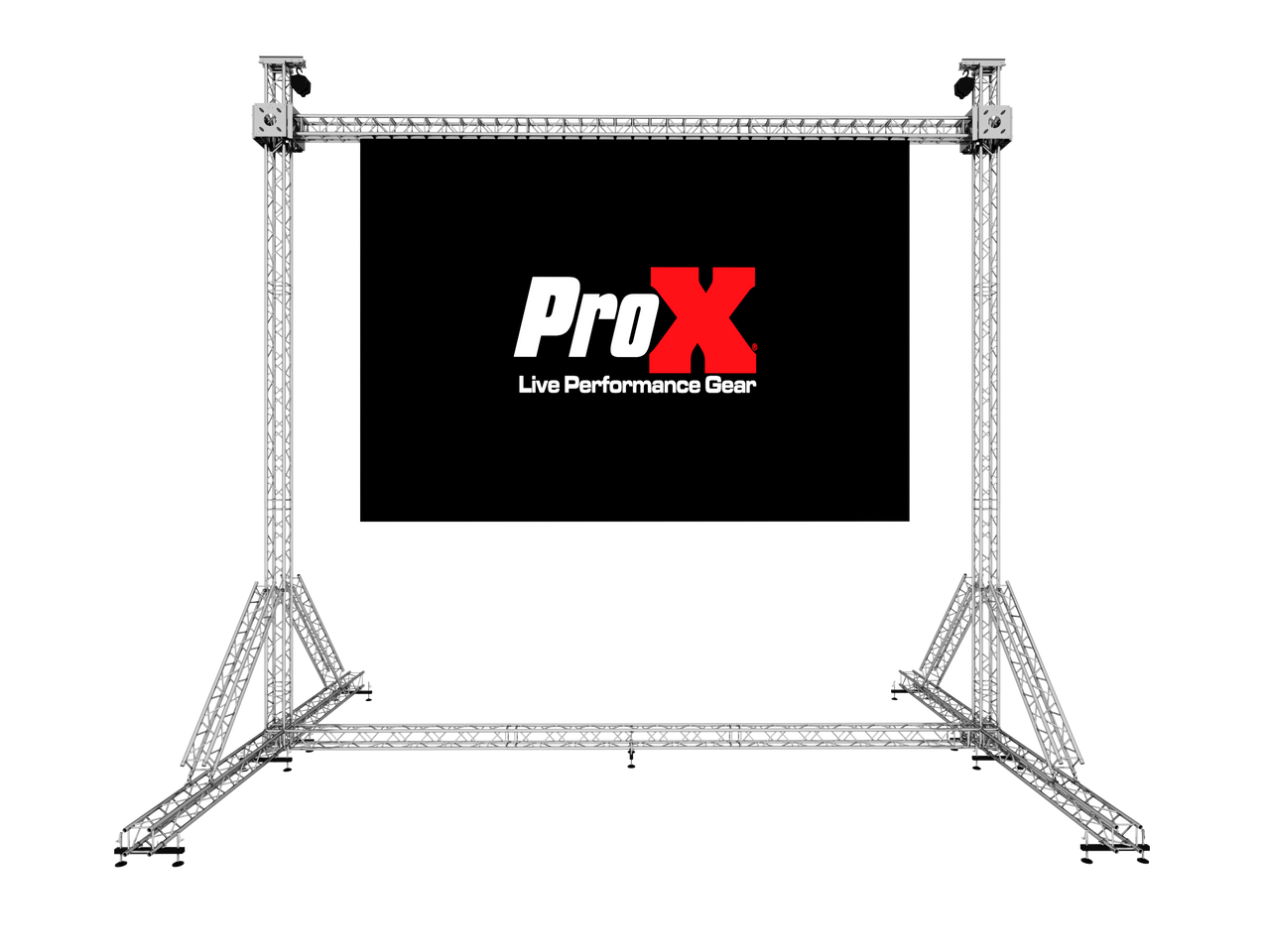

LED Screen Display Panel Video Fly Wall Truss Ground Support System 30'W x 30'H TriGrip

Featuring the ProX XTPGS3030LEDF35 LED Screen Display Panel Video Fly Wall Truss Ground Support System , a complete 30-foot wide by 30-foot tall indoor and outdoor capable package purpose-built for flying LED video wall panels at live events, festivals, concerts, corporate productions, and permanent installations. This is a full turnkey system engineered to get your video wall up and performing with confidence. Note: LED wall panels are not included. A Larger Scale for Larger Productions When your production demands a bigger visual impact, this system steps up to the challenge. At 30 feet wide and 30 feet tall, the ProX XTPGS3030LEDF35 gives production companies, event rental houses, and touring crews the structural real estate to fly a truly commanding LED video wall. This is the bigger sibling to the 20x23 configuration, built on the same proven platform but scaled to serve the demands of main stage environments, large format corporate events, and festival productions where the audience extends far and the screen needs to match. The Ground Support Foundation At the base of the system are two XT-GSBMK3 Universal Vertical Tower Ground Support Bases. These wheeled units include integrated leveling jacks, making it practical to set up on uneven terrain without shimming or improvised solutions. The wheels allow you to roll the towers into position before locking down, which keeps load-in moving efficiently. Four sets of XT-GSOUTS3X2 Ground Support Outrigger Stabilizers attach to each tower base, extending horizontally along the ground with diagonal bracing running up to the vertical tower. This outrigger configuration creates a wide, low-profile stabilizing footprint at ground level that resists lateral forces. For outdoor productions where wind load is a real concern, this is the structural detail that matters most. Hinge Joints and Sleeve Block Corners Two packs of XT-HINGEX4 conical tube male-to-male hinge joints connect the vertical tower sections and are compatible with F31, F32, and F34 truss formats. Two XT-BLOCK-MK2 four-way sleeve block corners tie the vertical towers and horizontal top bar together at the critical load transition points where the system changes direction from vertical to horizontal. Top Sections and Chain Hoist Interface Two XT-TOPCM top truss sections sit at the peak of each tower. These are the interface points between the structure and the chain hoist system , rated for electric motor or manual chain hoist loads up to 4 tons. The 1-ton manual chain hoists included with this package each carry 30 feet (9 meters) of chain, giving you the working height range to raise the assembled horizontal truss and video wall to your required position. F34 Square Truss Construction The truss segments throughout this system are manufactured from EN-AWT6 6082 aluminum alloy, the same high-strength material used throughout professional staging applications worldwide. Each segment in the horizontal fly bar has an 11.42-inch by 11.42-inch cross section with 2-inch main tubes at 2mm wall thickness and 0.75-inch brace tubes. F35 Compatibility The ProX F35 system is a compatible center piece for the unit, and adds a fifth central tube , allowing LED panels to hang directly from the center of the structure—improving balance, safety, and efficiency. While standard F34 box truss is excellent for general lighting and scenic applications, LED video walls introduce front-loaded and centralized weight that benefits from a dedicated hang point. ProX F35 TUV Certified Welding Every truss component in this package carries TUV certified welding . TUV is an independent, third-party certification body and a Nationally Recognized Testing Laboratory (NRTL) that verifies safety and quality against internationally recognized standards. This is not self-certification. When this system is overhead and carrying the load of a large video wall at a live production, that distinction matters. Industry-Standard F34 Compatibility The…
