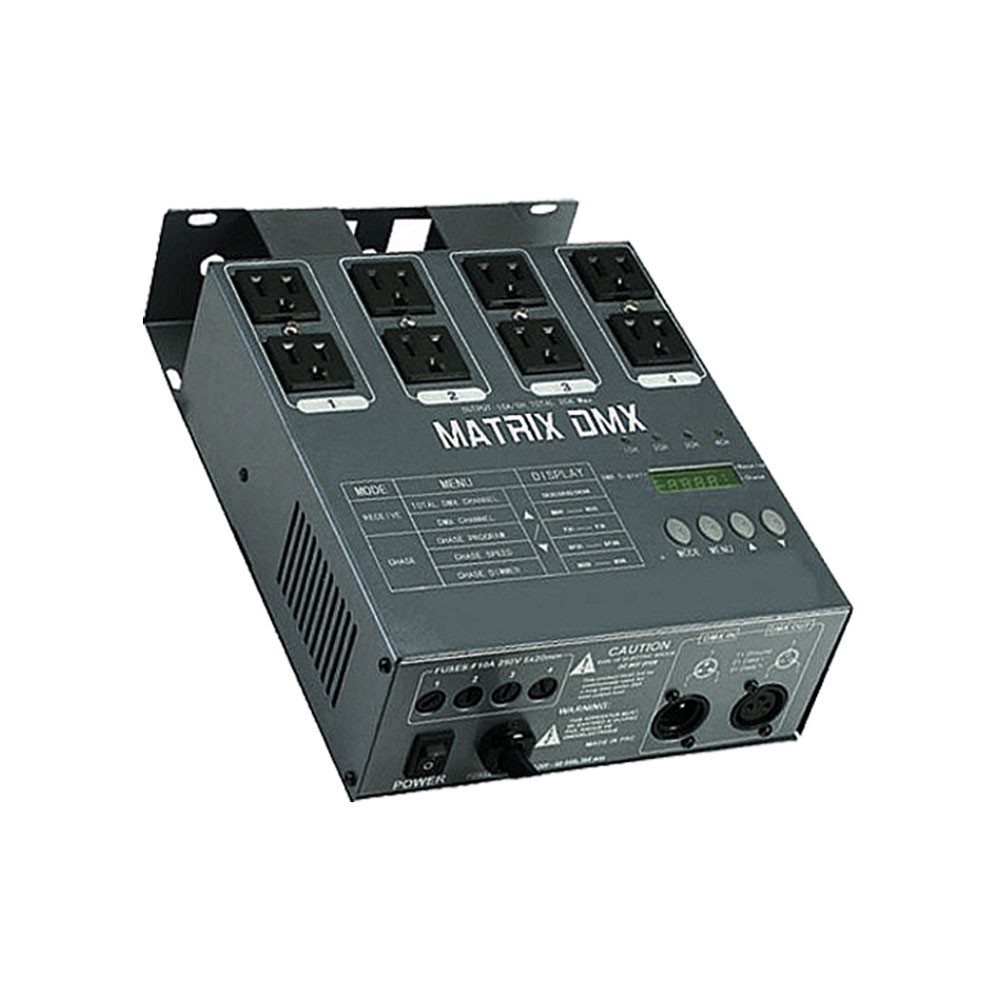

MATRIX PRO DMX Power Panel 4 Channel

The Dimmer pack supports the use of 1, 2, or 4-channels. This pack can serve as a stand-alone chaser or a DMX dimmer pack. It is designed for zero-crossing circuitry which protects against inductive loads. Each channel comes with two grounded 3-prong Edison sockets. The dimmer pack features 3 pin XLR female and male connectors for DMX compatibility. Each channel is Equipped with a 5A fuse and the maximum load per channel is 600W for a total load of 1800W at 120V. Please keep in mind that it is not recommended to operate this dimmer pack at maximum load continuously or for long periods of time. Xstatic X-860-DMX Matrix Pro Features: 3 pin XLR female and male connectors for DMX control One, two or four channel configuration option Dimming or switching setting of any channel in DMX or manual mode Digital display for easy setting and control Double output 110v grounded outlet per channel 16 built in preset programs Music mode with sound sensitivity knob Full manual control over each channel in DMX or manual mode AC 120V/230V 50-60Hz switch Rope light connection output On / off main power switch External Fuse Holders Xstatic X-860-DMX Matrix Pro Specifications: Number of channels: 4 channels Protocol: DMX 512 Voltage (V): 120V 60Hz Power: up to 600W per channel, 15Amp total load Warranty: 1 Year Manufacturer warranty
